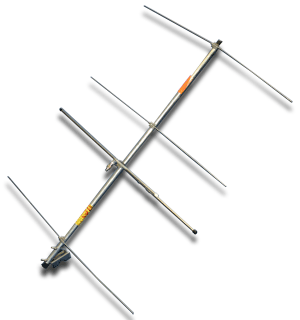

ANTENNAS

Highlights:

• High gain and excellent directionality.
• Used for semi-permanent sites and mobile systems.
• Custom-tuned for user-specified 4 MHz range.
• Includes 1.5 meter cable.

Standard Package Includes:

1.52 m (5 ft) RG58 cable (ATS #11606), UHF-BNC connector (ATS #12748), and antenna grip (ATS #11218).

Antenna Specs

Gain

Gain/isotropic: 8.7 dBi, Gain/dipole: 6.5 dBd

Half power width

Horiz.-Plane: 65º, Vert.-Plane: 80º

Length:

110 cm (44 in.), (except ATS #13887 is 91 cm (36 in.))

Height

67 cm (26 in.) to 102 cm (40 in.)

W/surf Area

.033 m² (.36 ft²) to .054 m² (.54 ft²)

Weight

1.17 kg (2.6 lb) to 1.26 kg (2.8 lb)

Radiation Diagram

Quick Antenna Tips

There are two basic antenna types: directional and non-directional (omni-directional). Directional antennas are typically Yagi type, non-directional are dipole type.

The reception pattern of a directional type antenna is shown below, left. The pattern for an omni-directional antenna is shown on the right.

• The more elements on the antenna, the better the gain and effective range (they are also less portable!).
• VHF systems are line of sight; the higher the antenna is above the ground, the better the range.
• All ATS antennas include a standard length coaxial cable; longer lengths are available.

We offer a complete line of antennas for radio tracking and all include a receiver cable. We can give you advice if you’re not sure what kind to use.

Why an ATS Antenna?

ATS offers antennas best suited for wildlife research tracking. Our antennas are specifically designed for tracking under demanding field conditions.

We custom tune your antenna to your specific frequency range. This assures you the best possible signal reception range for your tracking work.

We guarantee our antennas for one year parts and labor on materials and workmanship. If you are not completely satisfied with your antenna, return it to us and we will refund your purchase.
