TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage (“B” suffix denotes 3-stage)

Calibration Tolerance

± 2.5kHz

Frequency Stability

± 2.5kHz, -20°C to 40°C

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)

Pulse Rate Variation

0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC

Battery

Lithium

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model	Dimensions (mm)

	A	B	C	D
A1110	11	38	11	11
A1115	11	50	11	11
A1120	11	52	11	11
A1130	11	61	11	11
A1135	16	49	16	15
A1135B	16	54	16	16
A1140	16	58	16	15
A1140B	16	62	16	16
A1150	16	75	16	15
A1150B	16	79	16	16
A1155B	30	79	30	16

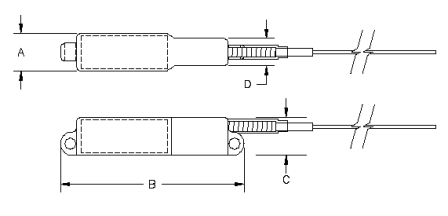

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
