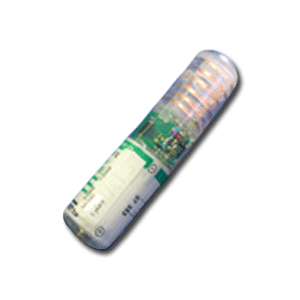

TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage

Calibration Tolerance

±2.5kHz

Frequency Stability

±2.5kHz, -20ºC to 40ºC

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)

Pulse Rate Variation

0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC

Battery

Lithium

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12. Coated with USP Class VI material

Dimensions

Model	Dimensions (mm)

	A	B	C
M1215	12	71	25
M1230	18	70	25
M1235	18	79	25
M1240	20	79	25
M1245B	20	102	25
M1250B	29	112	30
M1255B	36	125	40

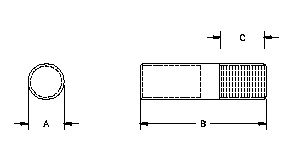

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
