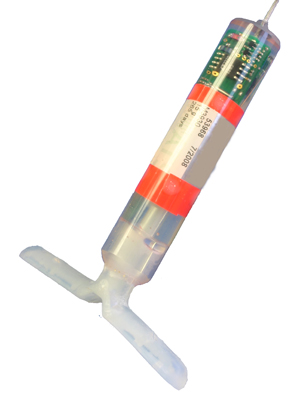

TRANSMITTERS

Technical Specifications

Transmitter Type

Crystal controlled 2-stage (“B” suffix denotes 3-stage)

Calibration Tolerance

±2.5kHz

Frequency Stability

±2.5kHz, -20ºC to 40ºC

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)

Pulse Rate Variation

0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC

Battery

Lithium

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model	Dimensions (mm)

	A	B	C	D	E
M3930	14	63	57	9	76
M3930U	17	72	67	13	89
M3960	19	71	80	14	88
M3960U	19	72	80	14	89
M3970	19	80	150	14	97

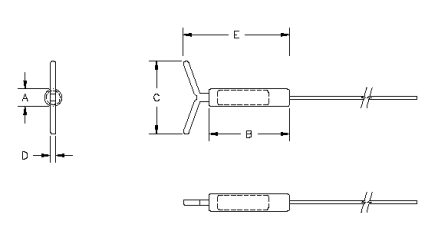

Fig. A. Measurement Diagram

Battery Life

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

* Battery life is estimated runtime without sun

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
