RECEIVERS

Highlights:

• Our most popular, portable, and lightweight receiver
• 4 MHz frequency range, 100 scannable channels
• Adjustable backlit water resistant control panel
• Built-in speaker and 1/4 inch phone jack
• Includes carry case
• Runs 18 hours on 4 "AA" alkaline batteries
• Specify a 4 MHz range between 140 - 220 MHz when ordering

Controls

• Channel selector
• Incremental frequency up/down
• RF gain
• Audio level
• Auto scan/memory bypass
• Receiver on/off
• Dwell time (scan rate)
• Add to memory

Memory

• 100 channels
• Nonvolatile memory

Display

Selected frequency

LCD (0.5” digits) with backlight for night use

Battery status

low batt indicator flashes when battery voltage is low

Signal level

LCD display bar graph

Connections

Antenna

BNC

Headset

Receptacle for ¼” mono phone plug

Power

Batteries

4 “AA” replaceable alkaline batteries (18 hours)

Pysical

Size

10.6 cm wide x 16.5 cm long x 6.5 cm high (4.2” x 6.5” x 2.5”)

Weight

0.7 kg (1.6 lbs) with batteries

Accessories

Included: Padded nylon case / Optional: David Clark headset

Environmental

Operating temperature

-20 degrees C to 50 degrees C

Storage temperature:

-70 degrees C to 60 degrees C

Humidity

95% non-condensing

Warranty

One year parts and labor on materials and workmanship

Features and specifications subject to change without notice.

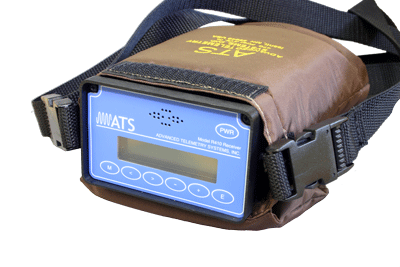

R410 Receiver includes carry case

Why an ATS Receiver?

ATS designs receivers for wildlife research tracking, and nothing else. There are many manufacturers of receivers that are not specifically designed for wildlife tracking, like wide band, handie-talkie types. These types of "generic" receivers will make your tracking more difficult.

Our receivers are built to withstand the rigors of the field. Our customers regularly send us 25 year old receivers for bench checks that are still in excellent operating condition.

We have designed a coding scheme shown to be 99% accurate in detecting coded transmitters. "False positives" are virtually eliminated. In various conference talks we have attended, we have seen that our competitor's coding architecture is nowhere near as accurate as our code-decode scheme.
