Solar Transmitters

Technical Specifications

Transmitter Type

Crystal controlled 2-stage

Calibration Tolerance

± 2.5kHz

Frequency Stability

± 2.5kHz, -20°C to 40°C

Pulse Rate and Width

Typical on time 20ms, off time 1100ms (controlled by uC; Programmed options available)

Pulse Rate Variation

0.01%/volt, ±0.01% for temperatures -20ºC to +40ºC

Energy Storage

Supercapacitor

Activation

By removing magnet

Encapsulation

Electrical resin, water-proof, specific gravity: 1.12

Dimensions

Model	Dimensions (mm)

	A	B	C
SV10-G	15	31	10

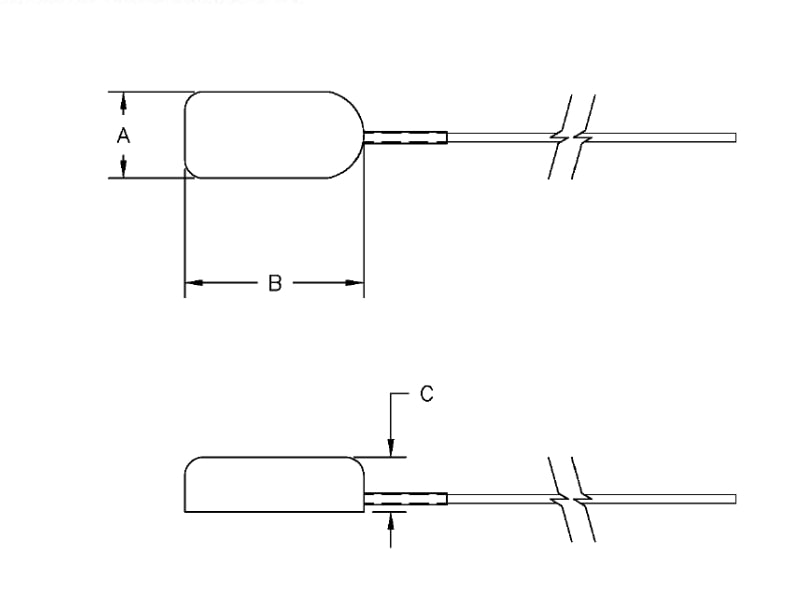

Fig. A. Measurement Diagram

Battery Life

*15 ms pulse width

Weight without attachment button. Attachment button weighs 1.7 grams.

Factors other than battery capacity may reduce life. Warranty life is maximum of two years

Factors other than battery capacity may reduce life. Warranty life is 50% of battery capacity, maximum of one year.
